ADF 11g Quicky 4 : Where is my cursor ?

In my current project I encountered a usability issue. The users where unable to see where the cursor was located. It was flickering, but on a page with ,multiple input components it was very difficult to locate the field where the cursor was located. I decided to help them out and that proofed to be both very simple and in the end very helpful. I used skinning to give the active field a colored background.



First I defined a skin in my trinidad-config.xml

 <?xml version="1.0" encoding="windows-1252" ?>
<skins xmlns="http://myfaces.apache.org/trinidad/skin">
<skin>
<id>custom.desktop</id>
<family>custom</family>
<extends>fusion.desktop</extends>
<render-kit-id>org.apache.myfaces.trinidad.desktop</render-kit-id>
<style-sheet-name>skin/custom.css</style-sheet-name>
</skin>
</skins>

Next I made sure that the application uses the skin by defining it in the trinidad-config.xml
 <?xml version="1.0" encoding="windows-1252"?>
<trinidad-config xmlns="http://myfaces.apache.org/trinidad/config">
<skin-family>custom</skin-family>
</trinidad-config>

Finally I created the corresponding style sheet and added entries for focus pseudoclass.

af|inputText::content:focus {background-color:rgb(214,214,255);}
af|inputDate::content:focus {background-color:rgb(214,214,255);}
af|inputListOfValues::content:focus {background-color:rgb(214,214,255);}

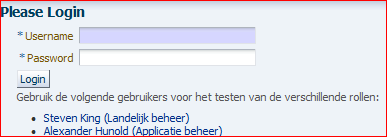

The result is highlighted fields whenever the cursor is in it.
For an LOV field:

For a date field:

For an inputtext field:


Imagine the effect on a page with several dozens of inpt fields....

Comments

동올애비 said…
good tip. but I wonder how do you know this af|inputDate::content:focus is the skin selector?
