Hibernate untill your ADF-faces Spring (part II)

If you are an ADF developer with an Oracle forms background, you've probably been using ADF Business Components to implement the business and integration layer of your webapplications. So have I. Hibernate was new to me, and I will try to explain just a little bit in this post. I have some very good developers in my team that do the hard work on the hibernate part of this project. I will keep it simple and just explain some of the basics.

The persistence layer contains a set of classes and components, which handle the tasks of persisting or retrieving objects to or from the underlying database. This layer includes a domain model that includes the business entities. Hibernate is a typical example for technologies used in this layer.

There is a thing to keep in mind. You don't write sql queries. The hibernate framework will generate those for you. This is called "Hibernate Query Language" (HQL). The generated Language is based on the tye of database that you are connecting to (database independent indeed !). As an Oracle developer you really have to get used to this (Why should you.... ? Just use Oracle 11g database;-)).

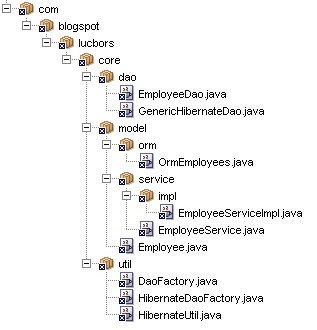

Ok, but how does it work ? Down here you see the content of the project:



You can see that there are three main packages:
A Dao package for the data access,
a Model package, containing the orm and the service
and a util package containing the DAOfactory and a HibernateUtil class.

How this all works together is very well explained in this document.

I'll just explain a (very) little bit on what the involved components will do for you:
Generic data access object (DAO)
The GenericHibernateDao class contains methods that are used by every DAO,
for instance the findAll and findByCriteria methods.

Entity Dao's
The specific entity Dao's extend the GenericHibernateDao and therefor inherit the generic methods. In this case the findByName method is specific for Employee and is implemented in the EmployeeDao.

Model Class
A Model Class for Employee which tells hibernate what table this is based on and that extends the OrmEmployees class. The OrmEmployees class holds the properties under Hibernate Control for Employee such as column mappings with the getters and setters.
package com.blogspot.lucbors.core.model;
.................
import com.blogspot.lucbors.core.model.orm.OrmEmployees;

@Entity
@Table(name = "EMP")
public class Employee extends OrmEmployees
{
/**
* Default Constructor.
*/
public Employee()
{
super();
}
...................

And
package com.blogspot.lucbors.core.model.orm;

imports here
......................
/**
* Class holds the properties under Hibernate Control for Employee.
*/
@MappedSuperclass
public abstract class OrmEmployees
{
@Id
@Column(name = "EMPNO", unique = true, nullable = false)
private Long id;
@Column(name = "ENAME", nullable = true)
private String firstName;
@Column(name = "JOB", nullable = false)
private String lastName;

/**
* Default Constructor.
*/
public OrmEmployees()
{
super();
}
/*......getters and setters go down here */
}

core-<app>.xml
The employeeServiceImpl is used to expose the functionallity. We mapped this in the core-empdemo.xml. This is a file that tells your application exactly where to get the service that you are using (contextConfigLocation). You should put this file on your classpath.

The hibernate configurationfile (hibernate.cfg) for indicating
the database version (duh) and the mapping of classes.
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-configuration PUBLIC
"-//Hibernate/Hibernate Configuration DTD 3.0//EN"
"http://hibernate.sourceforge.net/hibernate-configuration-3.0.dtd">
<hibernate-configuration>
<session-factory>
...................
<property name="hibernate.connection.driver_class">oracle.jdbc.driver.OracleDriver</property>
<property name="hibernate.dialect">org.hibernate.dialect.OracleDialect</property>
<property name="hibernate.current_session_context_class">org.hibernate.context.ThreadLocalSessionContext</property>
.............
<mapping class="com.blogspot.lucbors.core.model.Employee" />
</session-factory>
</hibernate-configuration>

In the hibernate.properties file you can define the database connection:
#############################
# Hibernate Database Connection #
#############################

hibernate.connection.url=jdbc:oracle:thin:@localhost:1521:xe
hibernate.connection.username=hr
hibernate.connection.password=hr
hibernate.default_schema=hr

All this is something that you configure at the beginning of the project. Normally there will be one "hibernator" to do this configuration.

I'm curious if I ever get to write part III on "Hibernate untill your ADF-faces Spring", because as we speak, there are some issues in the project. Nothing to do with technology or architecture, it's (again) all about politics..........
